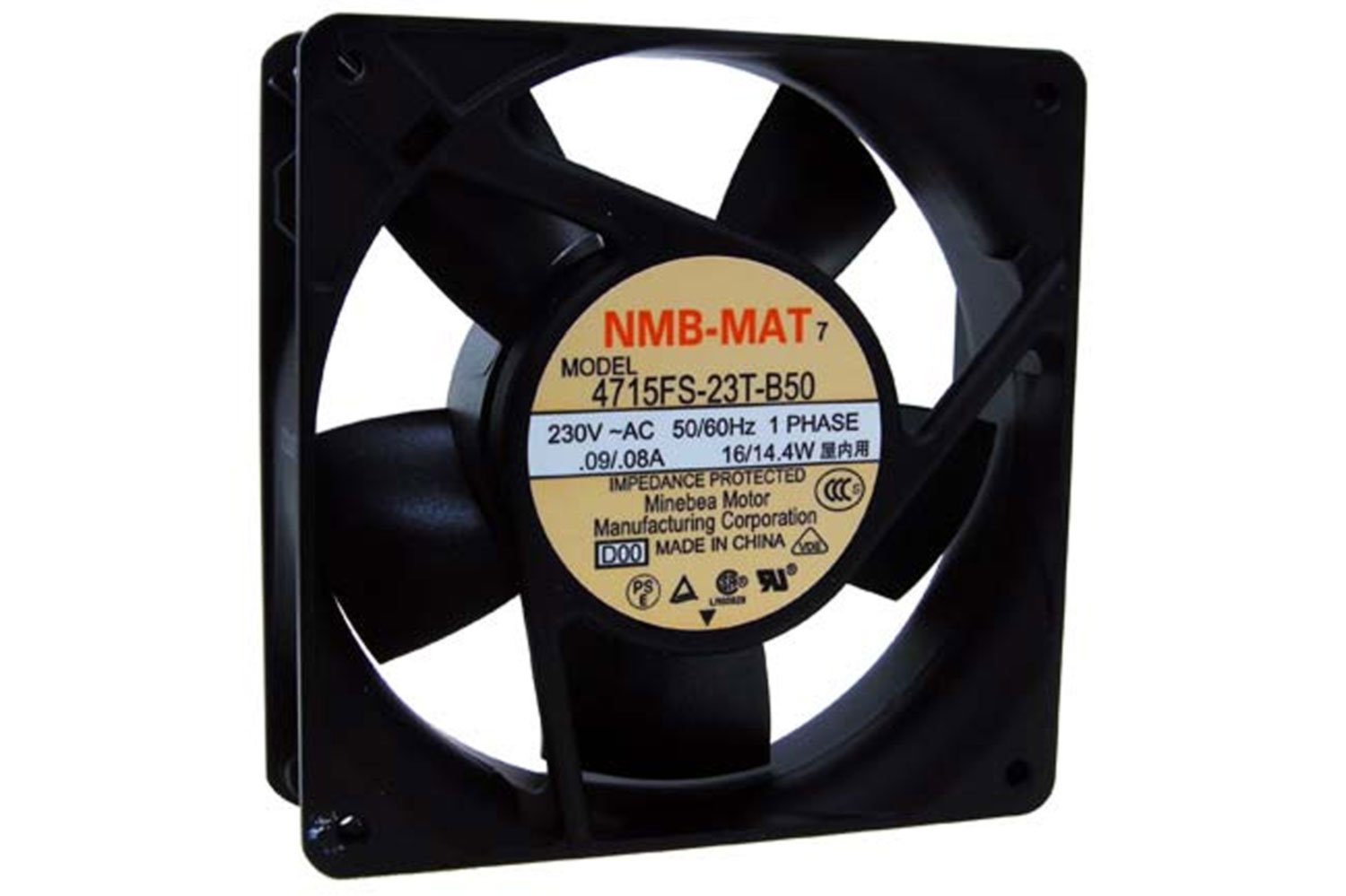

4715FS-23T-B50 AXIAL FAN

Product Description

The 4715FS-23T-B50 Axial Fan is a high-performance industrial AC cooling fan designed for heavy-duty ventilation and heat dissipation in electrical panels, machinery, inverters, and industrial equipment. It is known for strong airflow, durable construction, and continuous operation capability in harsh environments.

Key Features
• High-efficiency 119 × 119 × 38 mm axial cooling fan
• 230V AC operation suitable for industrial power systems
• High airflow output for effective cooling of large enclosures
• Ball bearing motor for long life and stable performance
• Rugged metal frame with reinforced plastic impeller
• Designed for continuous 24/7 industrial operation
• Low vibration and stable rotation at high speed
• Terminal connection for secure wiring installation
• Reliable heat dissipation for heavy electrical loads
• Suitable for control panels, UPS systems, CNC machines, and inverters

Specifications

1. Product Type: AC Axial Cooling Fan
2. Model: 4715FS-23T-B50 (NMB / Minebea series)
3. Size: 119 × 119 × 38 mm
4. Rated Voltage: 230V AC
5. Frequency: 50/60 Hz
6. Power Consumption: ~14W
7. Current: ~0.08A
8. Speed: ~3100 RPM
9. Airflow: ~110 CFM (≈3.1 m³/min)
10. Noise Level: ~45 dB(A)
11. Bearing Type: Ball Bearing
12. Connection Type: 2-terminal lead/connector type
13. Application: Industrial cooling, electrical panels, UPS systems, automation equipment, CNC machinery, and ventilation systems
