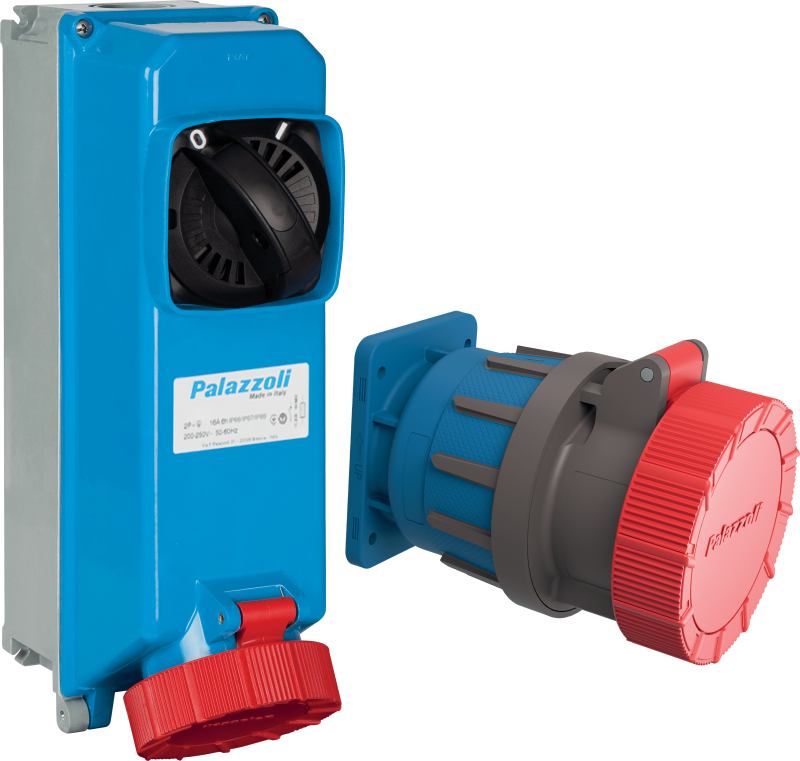

482126 Fixed Interlocked Panel Mounting Socket

Description

The 482126 Fixed Interlocked Panel Mounting Socket is a heavy-duty industrial power socket designed for safe and secure electrical connections in demanding industrial environments. It is widely used in power distribution systems, industrial machinery, construction sites, manufacturing plants, and automation applications across UAE, GCC, and global markets. This interlocked socket ensures safe operation by preventing plug removal or insertion while the power supply is active, enhancing operator safety and equipment protection.
Built with durable industrial-grade materials, the socket provides excellent resistance against dust, moisture, mechanical impact, and harsh operating conditions. Its panel mounting design allows stable installation in control panels and distribution boards, making it suitable for continuous industrial use.

1. Product Type: Fixed Interlocked Panel Mounting Socket
2. Model: 482126
3. Socket Type: Industrial Power Socket with Interlock
4. Rated Voltage: 220V to 415V AC (model dependent)
5. Current Rating: 16A / 32A / 63A (variant dependent)
6. Frequency: 50Hz / 60Hz
7. Mounting Type: Panel Mount
8. Pole Configuration: 2P+E / 3P+E / 3P+N+E (model dependent)
9. Protection Class: IP44 / IP67 (variant dependent)
10. Housing Material: Flame Retardant Thermoplastic
11. Operating Temperature: -25°C to +55°C

• Integrated safety interlock mechanism
• Prevents unsafe plug insertion and removal
• Strong and durable industrial construction
• Suitable for heavy-duty power applications
• Reliable performance in harsh environments
• Easy and secure panel mounting installation
• Dust and moisture resistant design
• Long service life with enhanced electrical safety
