AFB1224SHE COOLING FAN

Product Description

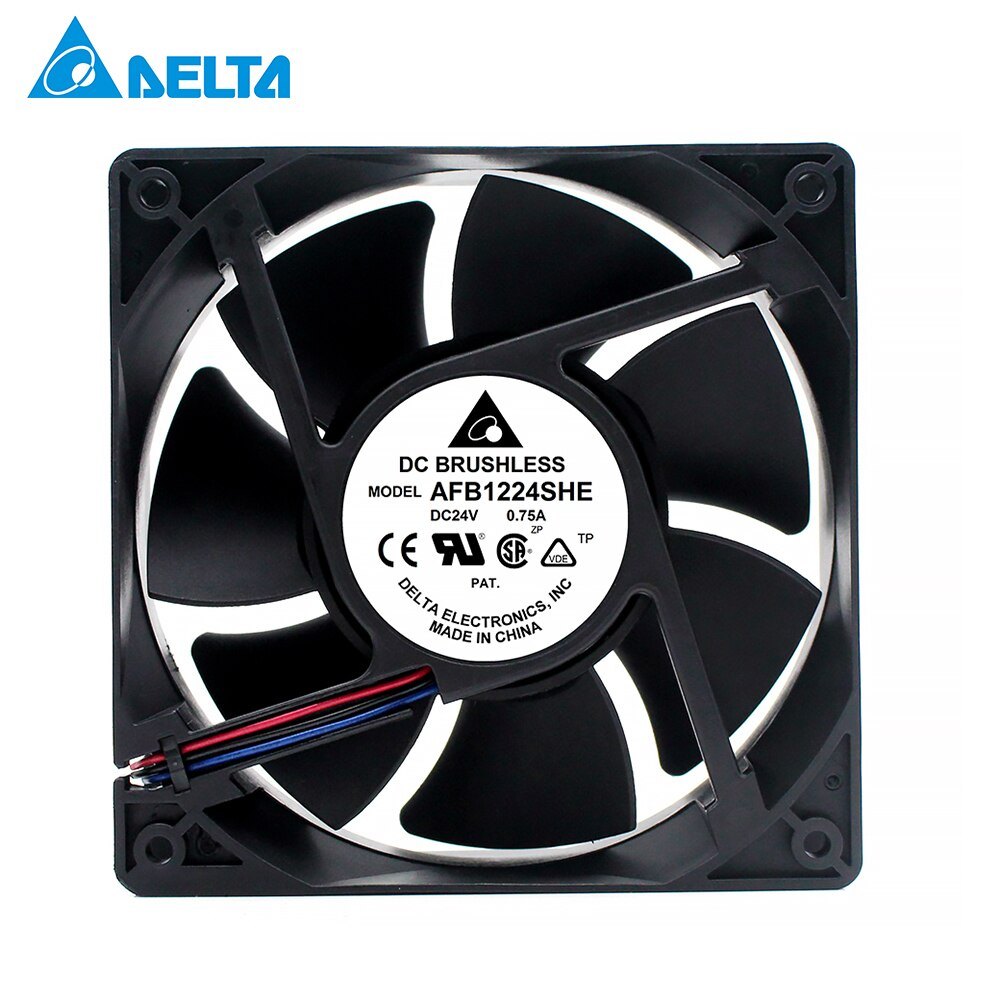

The AFB1224SHE is a Delta Electronics DC brushless axial cooling fan designed for high-performance industrial cooling applications such as servers, power supplies, telecom equipment, and automation systems. It is a 120 mm × 120 mm × 38 mm, 24V DC high-speed fan known for strong airflow and reliable long-life operation.

Key Features

• High-performance DC axial cooling fan
• 24V DC operation (wide operating range ~7–27.6V)
• 120 × 120 × 38 mm industrial standard size
• High airflow design for strong cooling capacity
• Ball bearing system for long service life
• 2-wire power connection
• Continuous industrial-duty operation
• Durable plastic frame and impeller
• Suitable for high-heat environments
• Used in servers, inverters, UPS systems, and industrial panels

Specifications

• Product Type: DC Axial Cooling Fan
• Model: AFB1224SHE
• Manufacturer: Delta Electronics
• Rated Voltage: 24 V DC
• Operating Voltage Range: ~7.0 – 27.6 V DC
• Power Consumption: ~12 W
• Rated Current: ~0.50 A
• Size: 120 × 120 × 38 mm
• Speed: ~3700 RPM
• Airflow: ~151 CFM (≈4.3 m³/min)
• Static Pressure: ~0.571 inH₂O
• Noise Level: ~53 dB(A)
• Bearing Type: Ball bearing
• Lifespan: Up to ~70,000 hours @ 40°C
• Mounting Type: Panel/frame mount
• Wire Type: 2-lead power connection
