BRAID COPPER BOND 25X35MM 7TCA083070R0012

Product Description

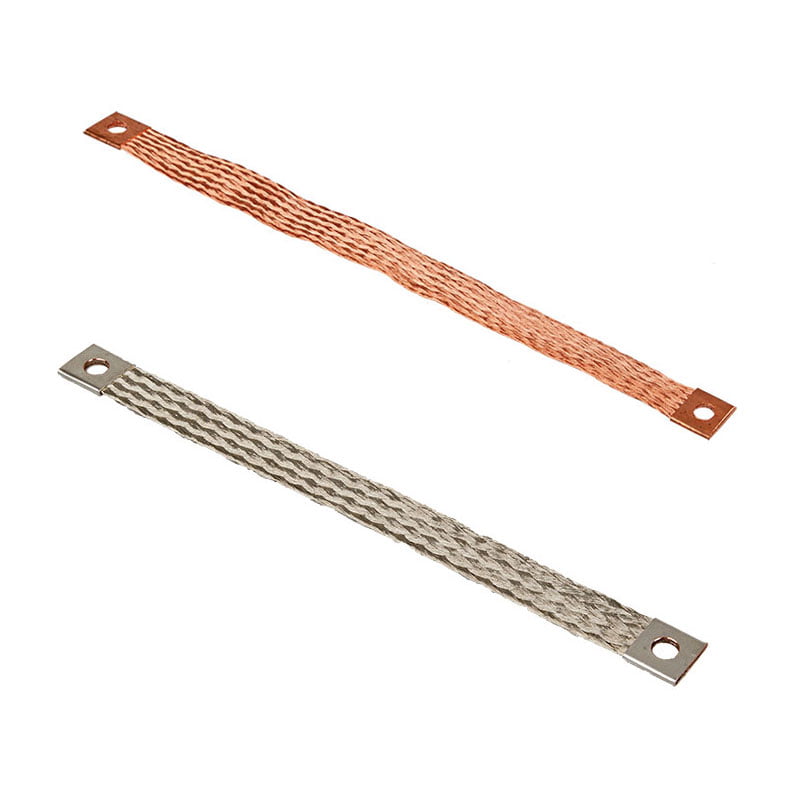

7TCA083070R0012 Braid Copper Bond 25 × 3.5 mm (BN505)

The 7TCA083070R0012 BN505 Braid Copper Bond is a flexible flat copper braid designed for bonding and earthing applications in lightning protection systems. It is commonly used for bonding gates, doors, fences, metal structures, and moving components where a flexible electrical connection is required. The pressed ferrule termination at both ends ensures maximum electrical contact and minimal earth resistance for reliable grounding performance.

Key Features

• Flexible flat copper braid bond for earthing applications
• Suitable for bonding gates, doors, fences, and metal structures
• High-conductivity bare copper construction
• Pressed ferrule connectors for secure termination
• Provides low-resistance electrical connection
• Excellent flexibility for moving or vibrating equipment
• Corrosion-resistant copper material
• Suitable for lightning protection and grounding systems
• Complies with BS 7430 and BS EN 13602 standards
• Easy installation and maintenance

Specifications

• Product Type: Flexible Copper Braid Bond
• Model: BN505
• Part Number: 7TCA083070R0012
• Material: Bare Copper Braid
• Overall Braid Dimensions: 25 × 3.5 mm
• Cross-Sectional Area: 35 mm²
• Length: 200 mm
• Hole Diameter: 11 mm
• Connection Type: Pressed Ferrule at Both Ends
• Weight: Approximately 0.09 kg
• Application: Earthing and Lightning Protection Systems
• Standards: BS 7430, BS EN 13602
• Suitable For: Gates, Doors, Fences, Metal Structures, Equipment Bonding
