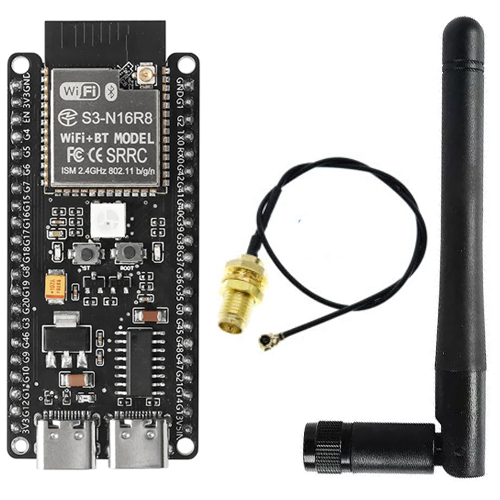

DEVELOPMENT BOARD ESP32-S3N16R8

Description

The ESP32-S3-N16R8 is a high-performance dual-core Wi-Fi + Bluetooth 5 (BLE) development board based on the ESP32-S3-WROOM-1 module. It features 16MB Flash and 8MB PSRAM, making it suitable for advanced IoT, AIoT, USB devices, and embedded applications requiring high processing power and large memory support.

Key Features

• Dual-core Xtensa LX7 processor up to 240 MHz
• Integrated Wi-Fi 2.4 GHz (802.11 b/g/n)
• Bluetooth 5 / BLE support for wireless communication
• 16MB Flash memory for large firmware storage
• 8MB PSRAM for high-speed data processing and buffering
• Native USB support (USB-OTG / USB-CDC depending on board variant)
• Rich GPIO support for SPI, I2C, UART, PWM, ADC
• Supports AI acceleration and vector instructions
• Low power modes for battery-powered applications
• Compatible with Arduino IDE, ESP-IDF, and MicroPython

Specifications

1. Product Type: ESP32-S3 Development Board
2. Model Number: ESP32-S3-N16R8
3. Processor: Dual-core Xtensa 32-bit LX7 up to 240 MHz
4. Memory: 16MB Flash + 8MB PSRAM
5. Wireless: Wi-Fi 2.4GHz + Bluetooth 5.0 (BLE)
6. Operating Voltage: 3.3V logic (5V via USB input)
7. USB Interface: USB Type-C (programming & power)
8. GPIO: Up to ~45 programmable GPIOs (board dependent)
9. Interfaces: SPI, I2C, UART, ADC, PWM, I2S, USB-OTG
10. Security: Hardware encryption (AES, SHA, RSA, secure boot)
11. Board Size: ~58 × 28 mm (typical variant)
12. Operating Temperature: -10°C to +70°C
13. Application: IoT devices, smart home systems, robotics, AI edge computing, USB HID devices, wireless sensors, industrial automation, embedded control systems
