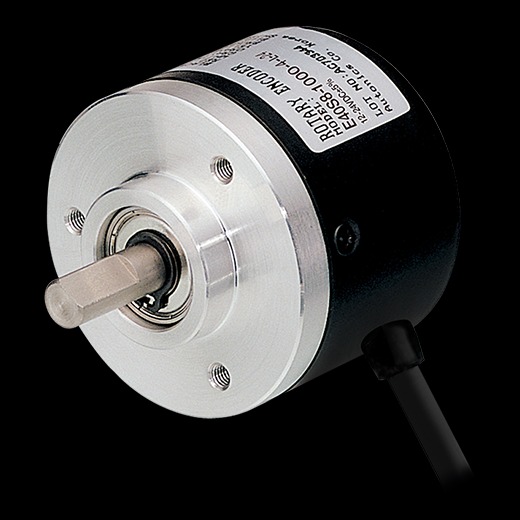

E40S6-360-3-T-24 ROTARY ENCODER

Product Description

The E40S6-360-3-T-24 Rotary Encoder is a shaft-type incremental encoder designed for accurate position, speed, and direction feedback in industrial automation systems. It is commonly used in CNC machines, conveyors, servo systems, and motion control applications where reliable pulse output is required.

Key Features
• Incremental rotary encoder with 360 pulses per revolution (360 PPR)
• Compact Ø40 mm housing for easy installation in tight spaces
• 6 mm shaft diameter with flatted end for secure coupling
• A, B, and Z channel output for direction and reference signal
• Totem pole output type for stable signal transmission
• Wide operating voltage range of 12–24V DC
• High response frequency suitable for fast motion control
• Low starting torque for smooth mechanical operation
• Durable industrial-grade construction for long service life
• Suitable for speed, angle, position, and distance measurement

Specifications

1. Product Type: Incremental Rotary Encoder
2. Model: E40S6-360-3-T-24
3. Resolution: 360 PPR
4. Supply Voltage: 12–24V DC (±5%)
5. Output Type: Totem Pole (A, B, Z signals)
6. Shaft Diameter: 6 mm (flatted shaft)
7. Housing Size: 40 mm diameter
8. Max Speed: 5000 RPM
9. Response Frequency: Up to 300 kHz
10. Protection Rating: IP50
11. Connection Type: Radial cable output
12. Operating Temperature: -10°C to +70°C
13. Application: Industrial automation, servo motors, conveyors, CNC machines, motion feedback systems
