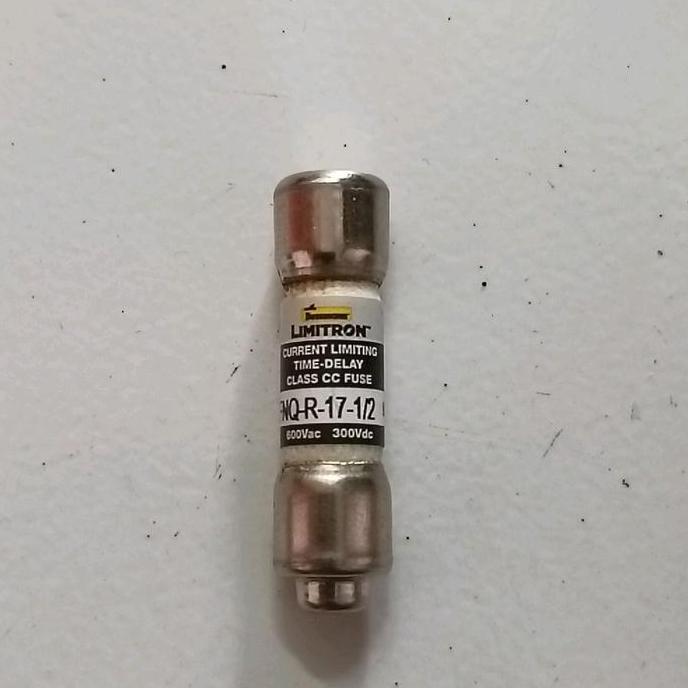

FNQ-R-17-1/2 TIME DELAY FUSE

Product Description

The FNQ-R-17-1/2 Time Delay Fuse is a Class CC, dual-element, current-limiting fuse designed for protecting control circuits, transformers, and industrial electrical systems where temporary inrush current is expected.

It is part of the Eaton Bussmann FNQ-R “CC-Tron” series and is widely used in control panels, PLC circuits, HVAC systems, and small motor/transformer protection.

Key Features

• Time-delay (slow-blow) fuse for handling inrush currents
• Class CC rejection-type fuse for secure compatibility
• Dual-element design for better overload + short-circuit protection
• High current-limiting capability for equipment safety
• Withstands temporary motor and transformer start surges
• Compact cylindrical cartridge design
• Very high interrupting rating for industrial protection
• Fits standard Class CC fuse holders (rejection type)
• Reliable protection for sensitive control systems
• Industrial-grade construction for long service life

Specifications

1. Product Type: Time Delay Fuse
2. Model: FNQ-R-17-1/2
3. Brand: Eaton Bussmann
4. Fuse Class: CC
5. Rated Current: 17.5A
6. Rated Voltage: 600V AC / 300V DC
7. Interrupting Rating: Up to 200 kA @ 600V AC
8. Response Type: Time Delay (Slow Acting)
9. Time Delay Characteristic: ~12 seconds at 200% overload
10. Body Size: 13/32″ × 1-1/2″ (10.3 mm × 38.1 mm)
11. Construction: Melamine tube with metal end caps
12. Element Type: Dual-element current limiting
13. Mounting Type: Cartridge / Fuse holder
14. Application: Control transformers, PLC panels, HVAC systems, industrial automation
