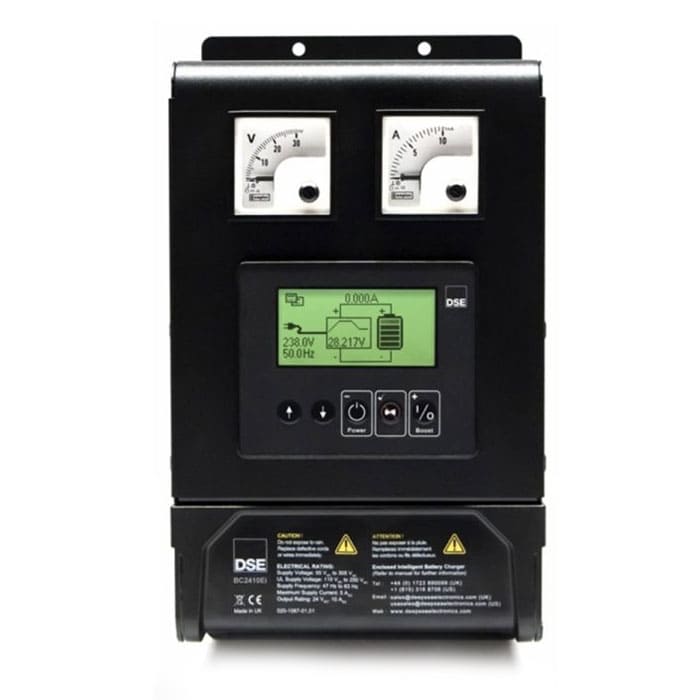

INTELIGENT BATTERY CHARGER BC2410EI

Product Description

The BC2410EI (Intelligent Battery Charger) is a professional industrial-grade smart charger manufactured by Deep Sea Electronics (DSE). It is designed for automatic charging and maintenance of 12V and 24V batteries used in generators, UPS systems, telecom, and industrial backup systems.

Key Features

• Fully intelligent microprocessor-controlled battery charger
• Supports 12V and 24V battery systems (auto-detect or configurable)
• Multi-stage charging (bulk, absorption, float, boost)
• Automatic battery type detection and optimized charging curves
• High-efficiency charging with low ripple output
• Built-in protection for safe operation in industrial environments
• RS485 Modbus communication for remote monitoring
• Temperature compensation using an external PT1000 sensor
• Can operate as battery charger + DC power supply
• Wall-mount enclosed rugged metal housing

Specifications

• Product Type: Intelligent Battery Charger
• Model: BC2410EI (DSE BC2410Ei series)
• Brand: Deep Sea Electronics (DSE)
• Input Voltage: 90 – 305V AC (wide range)
• Output Voltage: 12V / 24V DC (auto or configurable)
• Output Current: 10A DC
• Charging Method: Multi-stage intelligent charging
• Efficiency: >86%
• Ripple: <1% (very stable DC output)
• Communication: RS485 Modbus RTU
• Protection Features:
– Short circuit protection
– Reverse polarity protection
– Over-voltage / under-voltage protection
– Over-current protection
– Over-temperature protection
• Temperature Range: -30°C to +55°C (operating)
• Mounting: Wall / panel-mounted enclosed unit
• Weight: approx. 2.3 kg
• Dimensions: 170 × 305 × 116 mm
