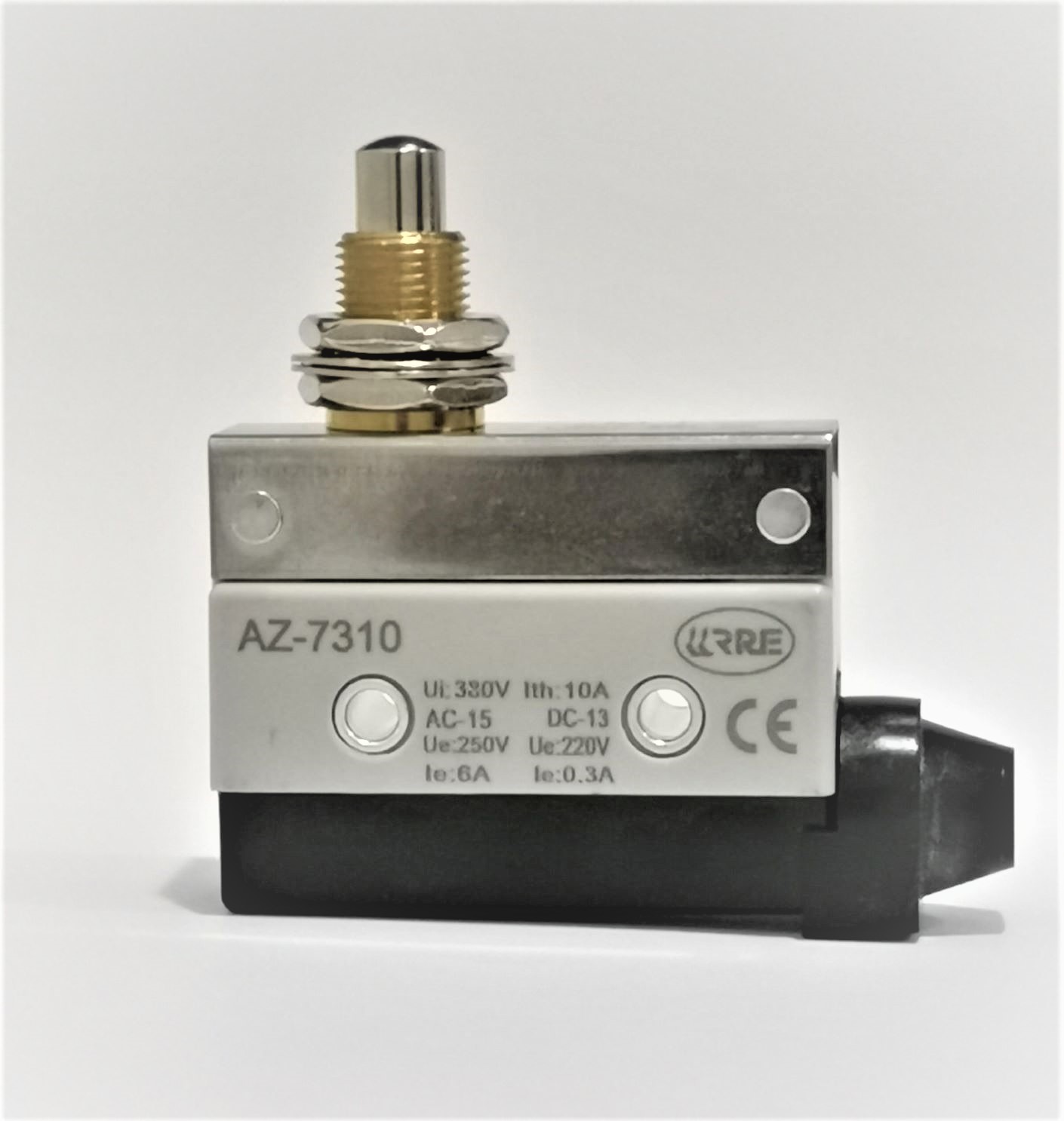

LIMIT SWITCH AZ-7310

Product Description

The AZ-7310 Limit Switch is a compact industrial micro limit switch designed for detecting mechanical position, movement, or end-stop limits in automation systems and machinery. It uses a plunger-type actuator for precise and instant switching, making it ideal for CNC machines, safety systems, and industrial equipment.

Key Features

• Plunger-type micro limit switch
• SPDT (NO + NC) contact configuration
• Snap-action mechanism for fast response
• Compact and rugged industrial design
• High mechanical durability
• Suitable for precision position detection
• Easy panel mounting with screw terminals
• Reliable performance in automation systems

Specifications

1. Product Type: Limit Switch
2. Model: AZ-7310
3. Contact Type: SPDT (1NO + 1NC)
4. Electrical Rating: up to 10A @ 250V AC (resistive load)
5. DC Rating: approx. 0.4A @ 115V DC
6. Actuator Type: Plunger (pin type)
7. Protection Rating: IP64 (sealed type variants available)
8. Operating Temperature: approx. -20°C to +60°C
9. Mounting Type: Panel/screw mount
10. Body Material: Metal + plastic housing
11. Application: CNC machines, conveyors, automation systems, safety interlocks, industrial machinery
