Description

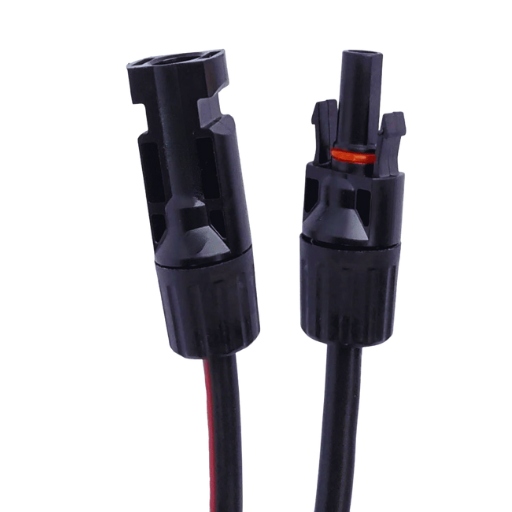

The MC4 Solar Connector is a standard photovoltaic connector used for safe and reliable electrical connections in solar power systems. It is widely used in solar panels, inverters, combiner boxes, charge controllers, and both on-grid and off-grid installations to ensure efficient power transmission between solar components.
Designed for outdoor solar applications, the MC4 connector provides a secure locking mechanism that prevents accidental disconnection. It is built with high-quality insulating material and metal contacts to deliver low power loss, strong conductivity, and long-term durability even in harsh environmental conditions.
- Product Type: MC4 Solar Connector (Male & Female Pair)
- Rated Voltage: Up to 1000V DC
- Rated Current: Up to 30A
- Contact Material: Copper, Tin-Plated
- Insulation Material: PPO / PA (Industrial Grade)
- Protection Rating: IP67 Waterproof
- Operating Temperature: -40°C to +85°C
- Cable Compatibility: 2.5mm² to 6mm² PV Cable
- Locking System: Snap-in Self-Locking Mechanism
- Application: Solar PV System Connections
- Safe and reliable solar panel connectivity
- High voltage and current handling capability
- Strong IP67 waterproof and dustproof protection
- UV-resistant and weatherproof construction
- Low contact resistance for efficient power flow
- Secure locking system for stable installation
- Suitable for residential, commercial, and industrial solar systems
