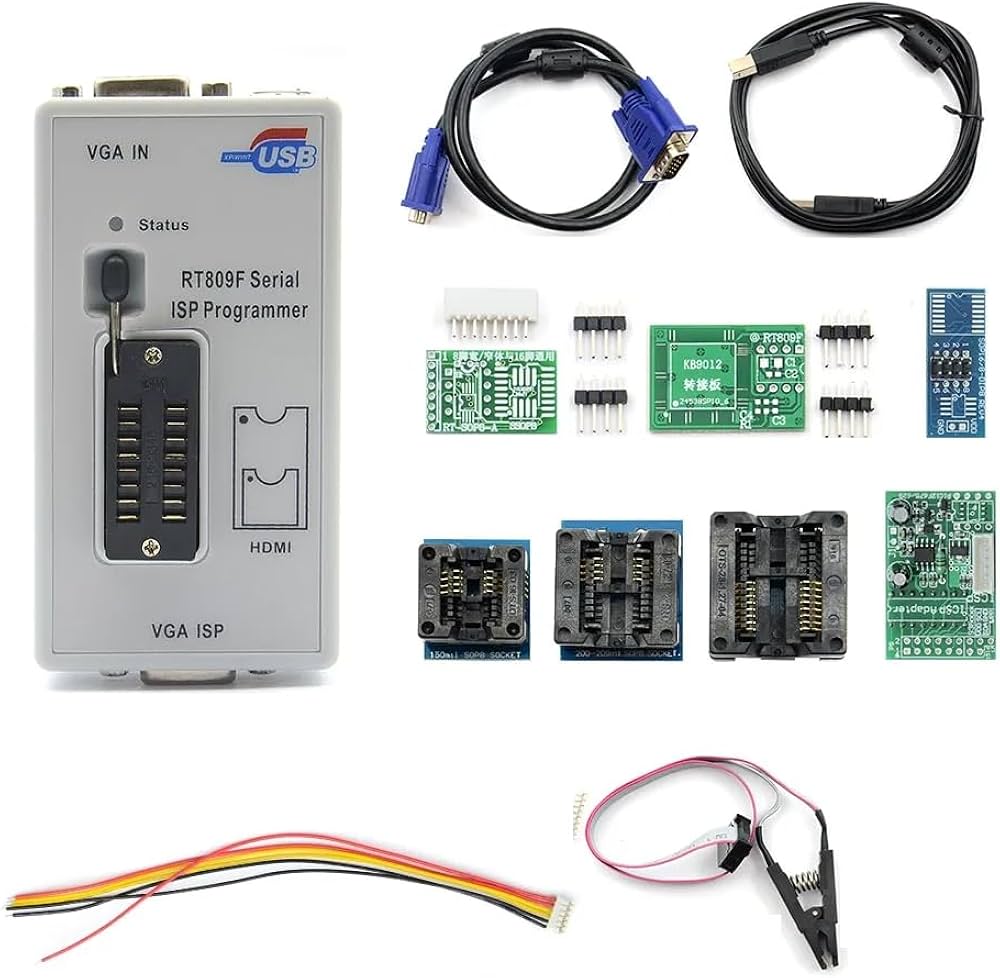

RT809F SERIAL ISP PROGRAMMER

Product Description

The RT809F Serial ISP Programmer is a universal hardware programming tool used for reading, writing, and repairing firmware in many electronic devices.

It is widely used in laptop repair, TV repair, motherboard repair, router firmware flashing, and EEPROM/BIOS programming.

Key Features

• Universal ISP (In-System Programming) + offline programmer
• Supports BIOS, EEPROM, SPI Flash, NAND, and MCU chips
• Works without removing the chip from the board (in-circuit programming)
• High-speed USB 2.0 connection with PC software
• Automatic chip identification in many cases
• Supports wide chip families:
– 24 series (I2C EEPROM)
– 25 series (SPI Flash / BIOS chips)
– 93 series (Microwire EEPROM)
• Supports LCD/TV EDID and VGA signal functions (repair use)
• Used for laptop password chips, BIOS recovery, and firmware backup
• Anti-static and protection circuits for safer operation

Specifications

• Product Type: Serial ISP / Universal Programmer
• Model: RT809F
• Interface: USB 2.0 high-speed communication
• Supported Chips: EEPROM, SPI Flash, NAND, MCU, BIOS ICs
• ISP Function: In-system programming (on-board chip flashing)
• Offline Programming: Supported with adapters
• Operating System: Windows XP / 7 / 8 / 10 / 11
• Software: Dedicated RT809F control software
• Speed: High-speed read/write (varies by chip type)
• Power Supply: USB powered (no external supply needed)
• Expansion: Supports adapters for SOP8, TSOP, NAND packages
