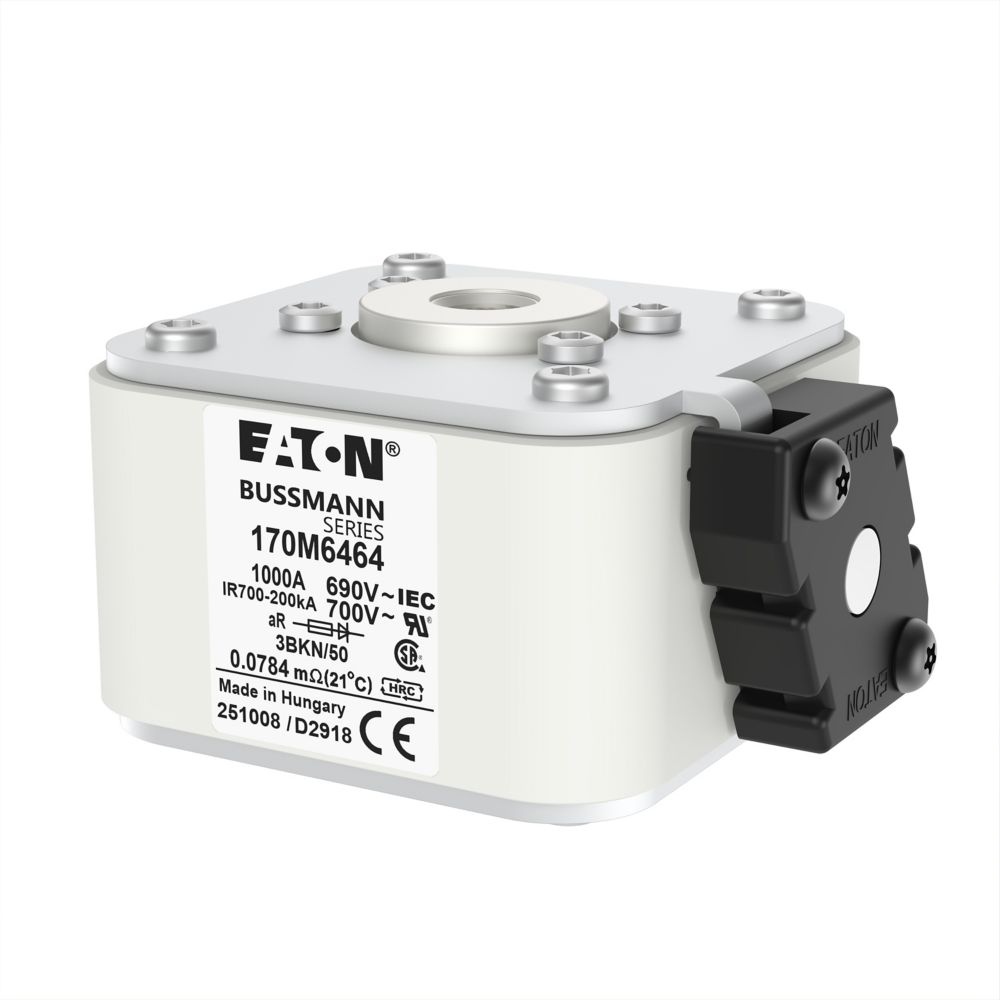

170M6464 FUSE

Product Description

The 170M6464 Fuse is a high-speed square body semiconductor fuse designed for protecting high-power electronic systems such as inverters, UPS systems, DC drives, and rectifiers. It provides ultra-fast fault interruption with very high current-limiting capability, ensuring safe protection of sensitive semiconductor devices in industrial applications.

Key Features

• High-speed semiconductor protection fuse
• Square body aR type design
• Ultra-fast fault clearing
• Very high interrupting capacity
• Low I²t energy let-through for device safety
• Suitable for AC/DC drive and inverter systems
• Flush-end bolted terminal design
• Center fuse status indicator
• Industrial-grade reliability

Specifications

1. Product Type: High-Speed Semiconductor Fuse
2. Model: 170M6464
3. Brand: Eaton Bussmann
4. Fuse Class: aR (Semiconductor Protection)
5. Rated Current: 1000A
6. Rated Voltage: 690V AC (IEC) / 700V AC (UL)
7. Interrupting Rating: 200 kA
8. Body Type: Square body fuse (Size 3)
9. Mounting Type: Flush/bolt (M12)
10. Dimensions: 53 × 76 × 92 mm
11. Weight: Approx. 848 g
12. Power Loss: ~122 W
13. Application: UPS systems, VFD drives, rectifiers, inverters, DC common bus protection
