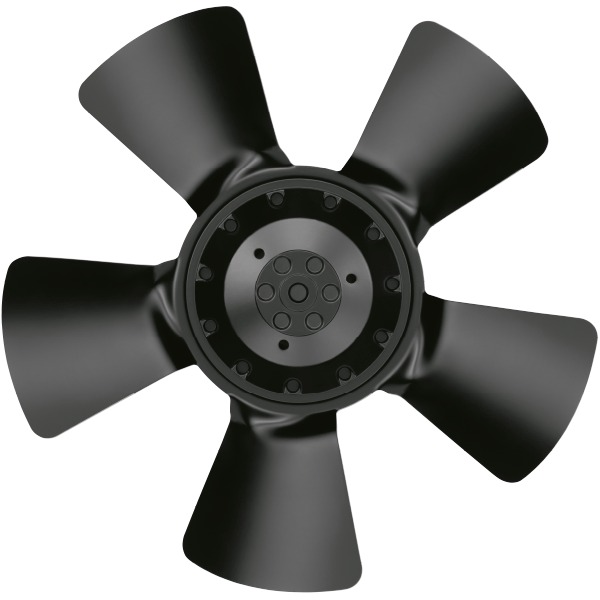

AXIAL FAN A2E300-AC47-02

Product Description

The A2E300-AC47-02 is a high-performance 230V AC axial cooling fan from the ebm-papst A2E300 series, designed for industrial ventilation, electrical enclosures, HVAC equipment, condensers, and power electronics cooling. It features a large 300 mm diameter impeller and delivers high airflow for demanding cooling applications.

Key Features

• High-performance 230V AC axial cooling fan
• Large 300 mm diameter impeller for high airflow delivery
• Ball bearing design for long operational life
• Metal impeller construction for industrial durability
• Built-in thermal overload protection (TOP)
• Suitable for continuous 24/7 operation
• High airflow performance for ventilation and cooling systems
• IP44 protection rating for industrial environments
• Reliable operation in HVAC and control panel applications
• Rugged design for demanding industrial installations

Specifications

• Product Type: Axial Cooling Fan
• Model: A2E300-AC47-02
• Brand: ebm-papst
• Rated Voltage: 230V AC
• Frequency: 50/60 Hz
• Fan Type: AC Axial Fan
• Frame Size: Ø300 × 97.5 mm
• Power Consumption: 140 W (50 Hz) / up to 190 W (60 Hz)
• Current Rating: 0.62 A (50 Hz) / up to 0.83 A (60 Hz)
• Speed: 2650 RPM (50 Hz) / up to 2900 RPM (60 Hz)
• Airflow: Up to 2435 m³/h (≈1433 CFM)
• Static Pressure: Up to 150 Pa
• Noise Level: Approximately 78 dB(A)
• Bearing Type: Ball Bearing
• Protection Rating: IP44
• Motor Type: Single-phase AC Motor
• Impeller Material: Metal / Steel
• Connection Type: 4-wire leads
• Operating Temperature: -25°C to +55°C
• Protection Feature: Thermal Overload Protection (TOP)
• Application: HVAC systems, condensers, industrial ventilation, electrical panels, telecom equipment, power supplies, automation systems
