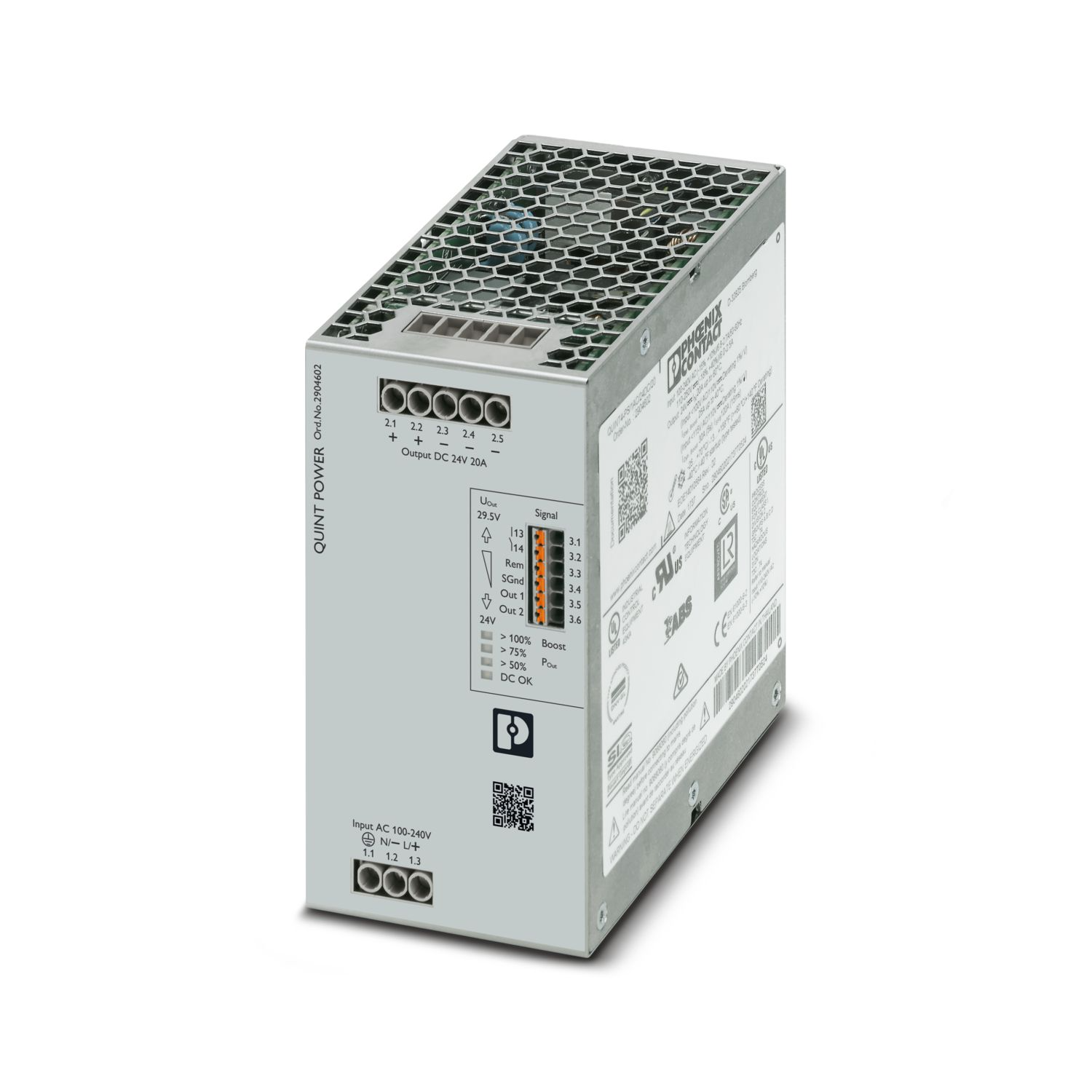

QUINT POWER SUPPLY 2904602

Product Description

The QUINT POWER 2904602 is a Phoenix Contact QUINT POWER series high-performance DIN rail switched-mode power supply, designed for demanding industrial automation systems that require stable, reliable 24V DC power.

It belongs to the QUINT 4th generation series, which includes advanced diagnostics, power reserve functions, and selective fuse-breaking technology for maximum system uptime.

Key Features

• Industrial high-performance DIN rail power supply
• Stable 24V DC regulated output
• High output current with power reserve capability
• SFB (Selective Fuse Breaking) technology for fast fault isolation
• Dynamic and static boost for heavy load handling
• NFC interface for configuration and monitoring
• High-efficiency switching design
• Wide AC/DC input range for global compatibility
• Advanced diagnostic and preventive function monitoring
• Rugged metal housing for industrial environments

Specifications

1. Product Type: Industrial Switched Mode Power Supply (SMPS)
2. Model: 2904602
3. Series: QUINT POWER (QUINT 4)
4. Output Voltage: 24V DC
5. Output Current: 20A
6. Output Power: 480W (up to 600–720W boost capability depending on mode)
7. Input Voltage: 100–240V AC / 110–250V DC
8. Efficiency: Up to ~94%
9. Frequency: 50/60 Hz
10. Mounting Type: DIN Rail Mount (NS 35)
11. Housing Material: Metal (industrial grade)
12. Protection Features: Overload, short circuit, overvoltage, thermal protection
13. Special Functions: SFB technology, dynamic boost, static boost, NFC configuration
14. Operating Temperature: approx. -25°C to +70°C
15. Application: Industrial automation, PLC systems, machinery control, process control, sensors, factory power distribution
