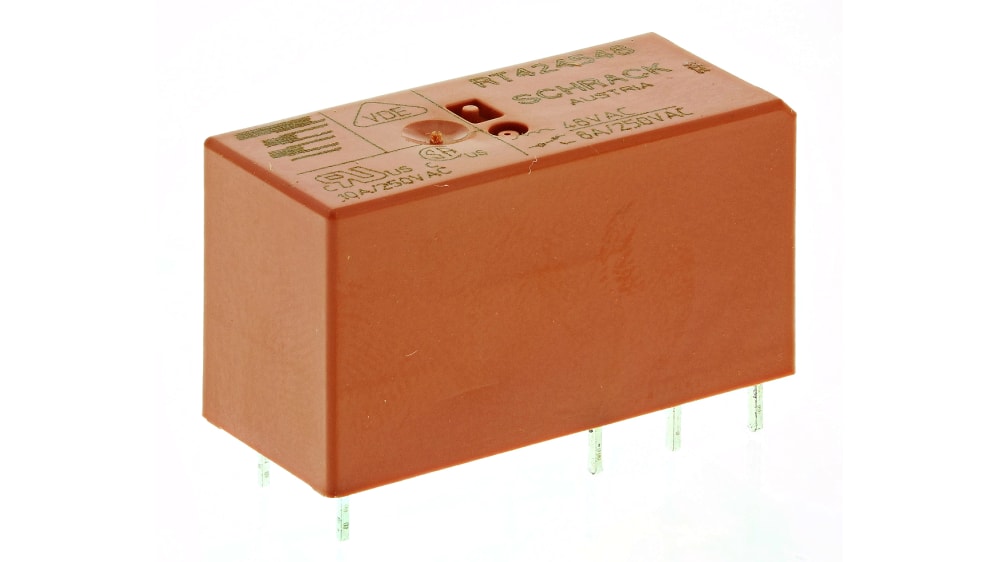

RT424548 48V 8A RELAY

Product Description

The RT424548 is a compact power PCB relay from the RT2 series, designed for industrial control, automation, HVAC, security systems, and interface applications. Featuring a 48V AC coil and DPDT (2 Changeover Contacts) configuration, it provides reliable switching performance with contact ratings up to 8A. Its compact PCB-mount design makes it suitable for control boards and industrial electronic equipment.

Key Features

• 48V AC coil voltage
• DPDT (2CO / 2 Form C) contact configuration
• Contact rating up to 8A
• Compact PCB-mount design
• High dielectric strength with reinforced insulation
• Silver nickel contacts for reliable switching
• Low power consumption AC coil
• Flux-proof sealed construction
• Long electrical and mechanical life
• Suitable for automation, HVAC, security, and control systems
• RoHS-compliant design
• High switching reliability for industrial applications

Specifications

• Product Type: Power PCB Relay
• Model: RT424548
• Series: RT2
• Manufacturer: TE Connectivity
• Coil Voltage: 48V AC
• Contact Configuration: DPDT (2 Form C / 2CO)
• Rated Contact Current: 8A
• Rated Contact Voltage: 250V AC
• Maximum Switching Voltage: 400V AC
• Contact Material: AgNi (Silver Nickel)
• Coil Power Consumption: Approx. 0.75 VA
• Coil Resistance: Approx. 1.4 kΩ
• Mounting Type: PCB Through-Hole Mount
• Terminal Type: Solder Pins
• Operating Temperature: -40°C to +70°C
• Dimensions (L × W × H): 29 × 12.7 × 15.7 mm
• Protection Type: Flux-Proof Sealed
• Applications: Industrial Automation, Interface Modules, Security Systems, HVAC Equipment, Control Panels, Timers, and General Switching Applications.
