RTE24730 RELAY 230V AC 8A

Product Description

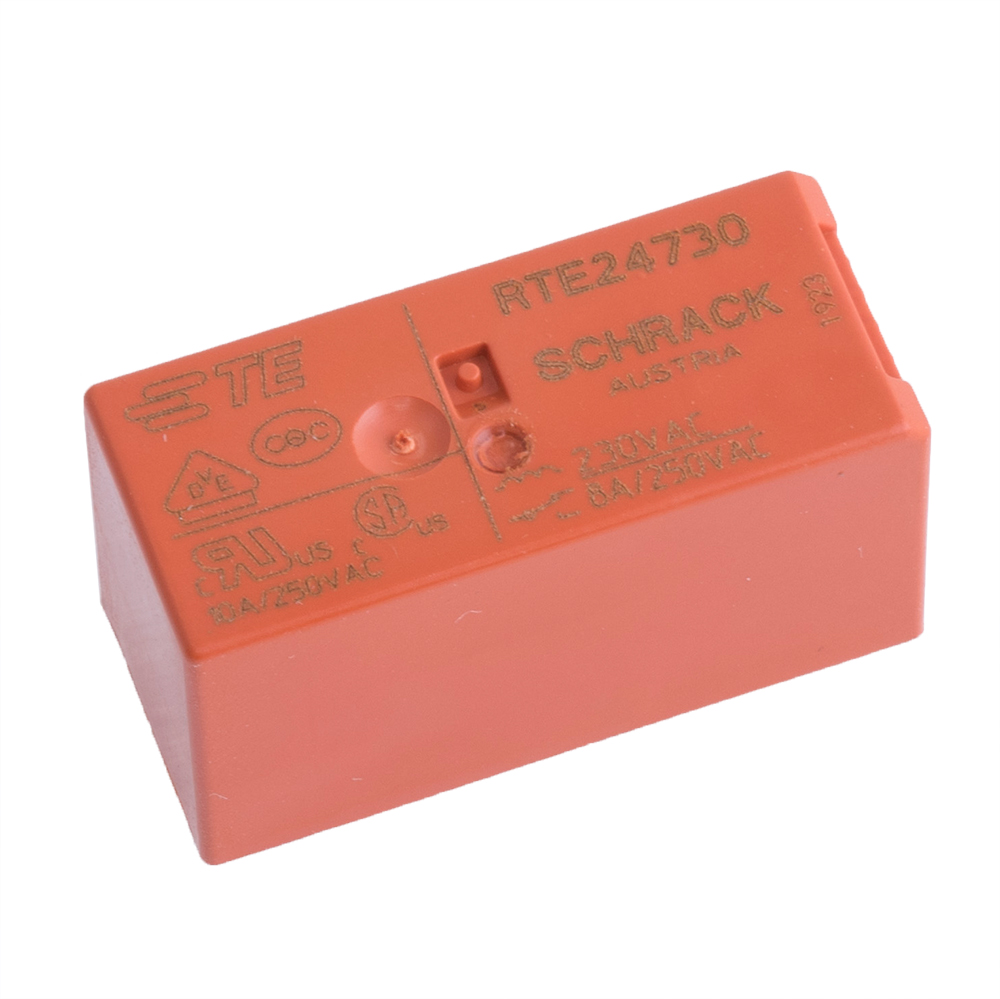

The RTE24730 is a 230V AC coil, DPDT (2 changeover), 8A PCB relay designed for reliable switching of electrical loads up to 250V AC. It is commonly used in industrial control circuits, PLC outputs, HVAC systems, and automation panels where a high-voltage coil relay is required for direct AC control.

Key Features

• 230V AC coil operation (direct mains-driven coil)
• DPDT (2 Form C) contact configuration
• 8A contact switching capacity
• Compact PCB-mount design
• High dielectric isolation between coil and contacts
• Fast response time for control applications
• Industrial-grade AgNi contact material
• Flux-proof sealed construction
• Suitable for continuous duty operation
• Reliable performance in automation and control systems

Specifications

• Product Type: Electromagnetic Power Relay
• Model: RTE24730
• Manufacturer: TE Connectivity
• Series: RT2
• Coil Voltage: 230V AC
• Contact Configuration: DPDT (2 changeover contacts)
• Contact Rating: 8A / 250V AC
• DC Contact Rating: 8A / 30V DC
• Coil Resistance: ~32.5 kΩ
• Coil Power: ~740 mVA
• Switching Voltage: up to 400V AC / 300V DC
• Mounting Type: Through-hole PCB
• Number of Pins: 8
• Operate Time: ~7 ms
• Release Time: ~2 ms
• Operating Temperature: -40°C to +70°C
• Contact Material: AgNi (Silver Nickel)
• Application: Industrial control panels, HVAC systems, automation equipment, machine control circuits
