TERMINAL CONNECTOR 3044076

Product Description

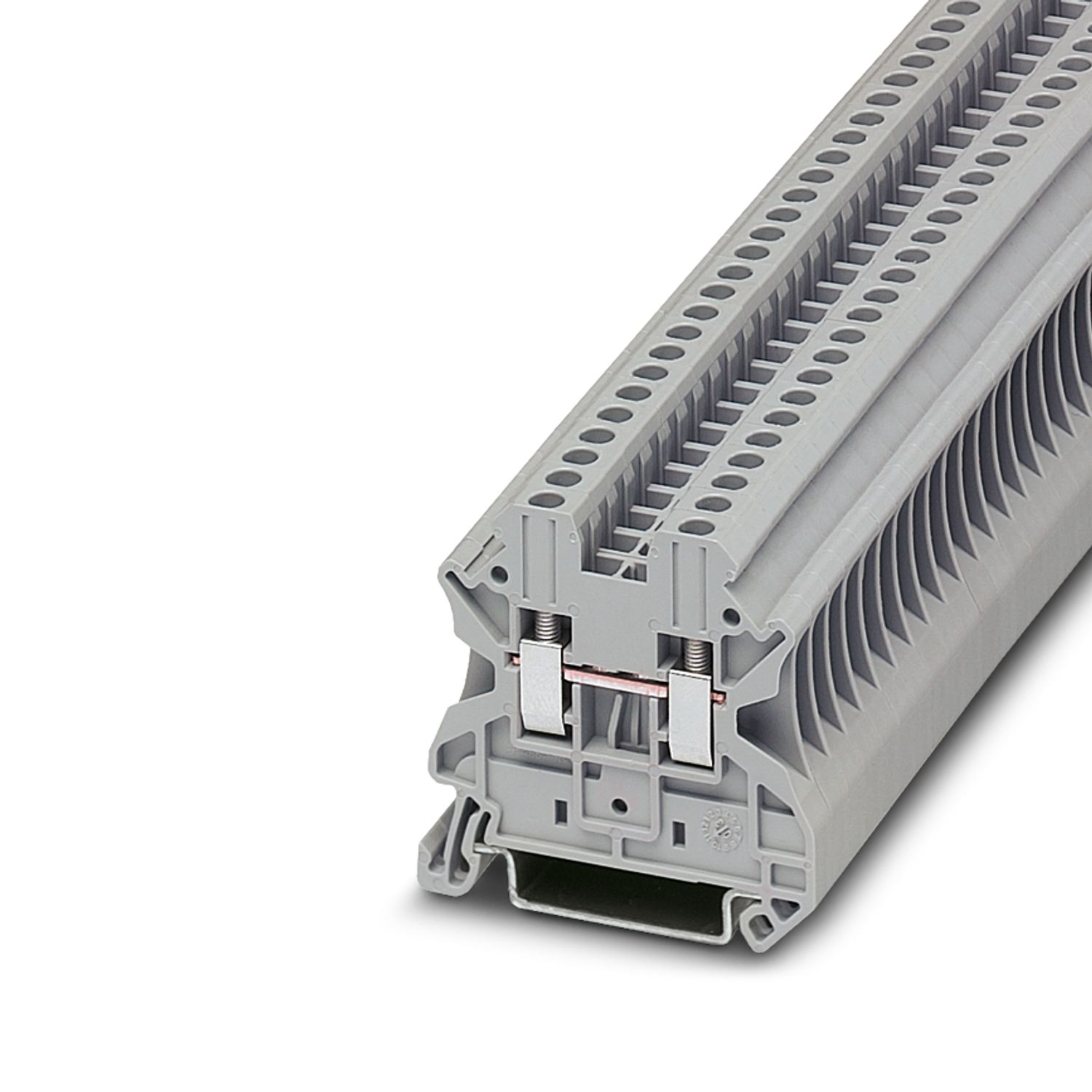

The 3044076 Terminal Connector is a Phoenix Contact UT 2.5 feed-through terminal block used for DIN rail wiring in industrial control panels and automation systems.

Short Overview

The UT 2.5 (3044076) is a compact screw-type feed-through terminal block designed to connect and distribute electrical conductors safely on DIN rail systems. It is widely used for control wiring, PLC panels, and power distribution due to its reliability and strong mechanical connection.

Key Features

• Feed-through DIN rail terminal block
• Screw-clamp connection system
• Compact 2.5 mm² design for space-saving wiring
• High vibration resistance for industrial environments
• Suitable for solid and stranded conductors
• Maintenance-free secure connection
• Flame-retardant industrial-grade housing
• Easy mounting on standard DIN rail (NS 35)
• Compatible with bridging, marking, and accessories
• High electrical safety and insulation performance

Specifications

1. Product Type: Feed-through Terminal Block
2. Model: 3044076
3. Series: UT 2.5 (Phoenix Contact CLIPLINE)
4. Rated Cross Section: 2.5 mm²
5. Conductor Range: 0.14 mm² – 4 mm²
6. Rated Current: 24 A
7. Rated Voltage: 1000 V
8. Connection Type: Screw connection
9. Number of Connections: 2
10. Mounting Type: DIN rail NS 35/7.5 and NS 35/15
11. Housing Material: Polyamide (PA), flame-retardant
12. Color: Grey (RAL 7042)
13. Operating Temperature: -40°C to +110°C
14. Application: Industrial control panels, PLC wiring, automation systems, power distribution
